Product > > Refrigerant Air Dryer >> Air Cooling Air Dryer

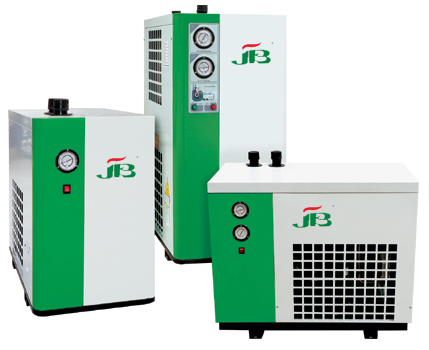

Air cooling Refrigerant Air dryer low temperature series
Using requirement
●Air Inlet temperature ≤ 45℃
●Ambient temperature ≤ 40℃
●Assembly Ambient:keep ventilation, no dust, smeary oil;
●Assembly place: keep the place smooth, keep it away from the wall 80cm at least;

Air cooling Refrigerant Air dryer high temperature series
Using requirement
●Air Inlet temperature ≤ 80℃
●Ambient temperature ≤ 40℃
●Assembly Ambient:keep ventilation, no dust, smeary oil;
●Assembly place: keep the place smooth, keep it away from the wall 80cm at least;

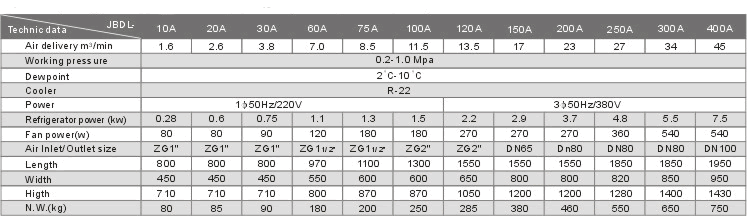

Air cooling Refrigerant Air dryer Technic Parameter (low temperature series)

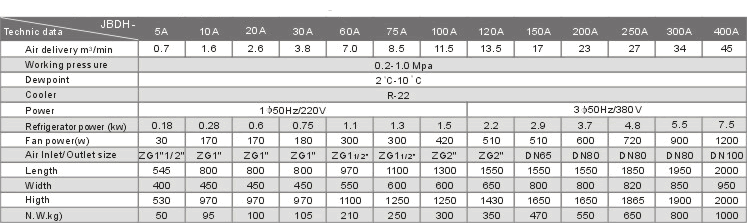

Air cooling Refrigerant Air dryer Technic Parameter (high temperature series)
