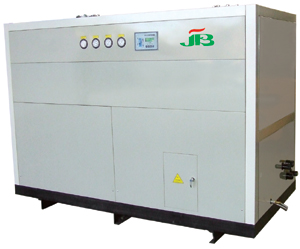

Water cooling Refrigerant Air dryer low temperature series
Using requirement
●Air Inlet temperature ≤ 45℃
●Assembly place: keep the place smooth, keep it
　away from the wall 80cm at least;
●Cooling water working pressure: 0.2- 0.4Mpa,
　 Water Inlet temperature ≤ 32℃
●Preparing cooling water:L/H = 300 x water
　 displacement （m3/min）
●Condenser water displacement:157 x water
　 displacement（m3/min）

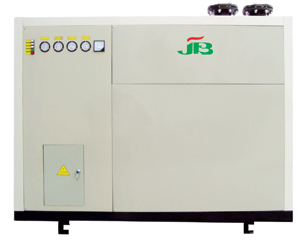

Air cooling Refrigerant Air dryer low temperature series
Using requirement
●Air Inlet temperature ≤ 45℃
●Ambient temperature ≤ 40℃
●Assembly Ambient：keep ventilation, no dust, smeary oil;
●Assembly place: keep the place smooth, keep it away from the wall 80cm at least;

Water cooling Refrigerant Air dryer high temperature series
Using requirement
● Air Inlet temperature ≤ 80℃
● Cooling water working pressure: 0.2- 0.4Mpa,
　 Water Inlet temperature ≤ 32℃
● Preparing cooling water: L/H = 300 x water
　 displacement （m3/min）
● Condenser water displacement: 157 x water
　 displacement（m3/min）

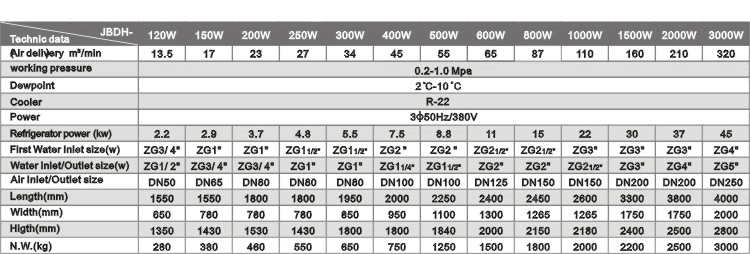

Water cooling Refrigerant Air dryer Technic Parameter (low temperature series)

Water cooling Refrigerant Air dryer Technic Parameter (high temperature series)
