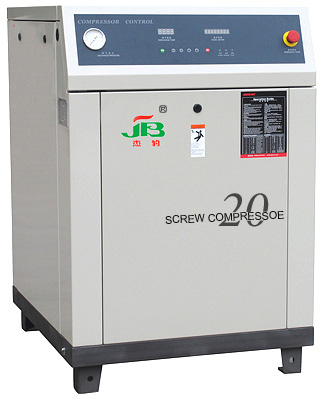

20HP JB-Series Screw Air Compressor
|
Model |
JB-20A7 |
JB-20A8 |
JB-20A10 |
JB-20A12 |
Air delivery (CFM, m3/min) |
81CFM / 2.3m3/min |
79CFM / 2.25m3/min |
72CFM / 2.05m3/min |
56CFM / 1.58m3/min |
Pressure( PSI, BAR) |
101.5PSI / 7BAR |
116PSI / 8BAR |
145PSI / 10BAR |
174PSI / 12BAR |
Meas.(mm) |
800 × 950 × 1155 |
800 × 950 × 1155 |
800 × 950 × 1155 |
800 × 950 × 1155 |
Motor (HP/KW) |
20HP / 15KW |
20HP / 15KW |
20HP / 15KW |
20HP / 15KW |
N.G.( KG) |
350KG |
350KG |
350KG |
350KG |
|
